Product: IOI-A100U2W

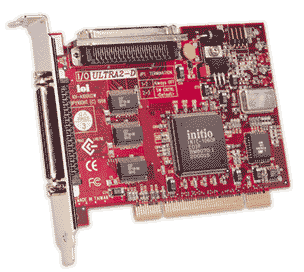

IOI-A100U2W (Multi-Mode)
PCI to Wide Ultra2 SCSI Host Adapter (LVD/SE)

  • PCI Bus Master
  • INITIO inic-1060
  • Transfer Rates:
    Single-Ended Mode:

    Fast SCSI (8 bit)
              -5 MB/s Asynchronous (10 MB/s with UltraSCSI)
              -10 MB/s Synchronous (20 MB/s with UltraSCSI)
    Fast and Wide SCSI (16 bit)
              -10 MB/s Asynchronous (20 MB/s with UltraSCSI)
              -20 MB/s Synchronous (40 MB/s with UltraSCSI)
    LVD Mode:
    Wide Ultra2 SCSI (16 bit)
              -80 MB/s Synchronous
  • Provide Flash EEPROM, make the SCSI BIOS upgradeable
  • Supports NEC PC-98
  • ASPI Compatible
  • Auto-Termination

The IOI-A100U2W features the flexibility, speed, and compatibility required to optimize today's PC servers and workstations.  The IOI-A100U2W provides unmatched Ultra2 SCSI data transfers of up to 80 Mbytes/sec- that's twice the speed of UltraWide SCSI and up to 8 times the speed of conventional FastSCSI.  Extended cable lengths of up to 12 meters for Ultra2 devices illustrate the IOI-A100U2W's system configuration flexibility.   It has also been thoroughly tested with several systems and peripherals to deliver the utmost in reliability and compatibility.  The 32-bit PCI Interface transfers data at the rate of 133 MByte/sec with a 33 Mhz PCI clock.  The SCSI interface is an Ultra2 interface capable of bursting data at 80 MByte/sec on the SCSI bus.  These high speed interfaces and an embedded I/O processor makes the IOI-A100U2W uses little or no CPU bandwidth by off-loading all the I/O tasks to the performance in I/O intensive applications such as multimedia, imaging, client server databases, intranet applications, WEB Tools and RAID subsystems that require high availability and throughput.

While the IOI-A100U2W host adapters are capable of keeping pace with the most demanding applications, they offer complete compatibility with your existing SCSI peripherals.   You can combine SCSI-1, SCSI-2, SCSI-3 or UltraSCSI peripherals for optimum performance and value.  The SCSI I/O pad design allows cable lengths of up to 12 meters.  In point-to-point configurations, cabling can be extended up to 25 meters.   This increased cable length provides greater flexibility in system configurations, especially in clustering and RAID applications.  The IOI-A100U2W host adapters feature SmartSCSI, a user friendly, BIOS resident setup utility that allows individual device configuration, host adapter termination, and PCI Plug n' Play installations via the keyboard.  The IOI Manager Set makes your SCSI software utility makes upgrading your system fast and easy.

Features

  • Built-in hardware Integrated Scatter/Gather Engine (ISGE)
  • On chip 27 MIPS 32-bit I/O Processor
  • Performs Wide Ultra2 SCSI bus transfers in either Single-Ended or LVD:
    Single-Ended Mode:
    Fast SCSI (8 bit)
              -5 MB/s Asynchronous (10 MB/s with UltraSCSI)
              -10 MB/s Synchronous (20 MB/s with UltraSCSI)
    Fast and Wide SCSI (16 bit)
              -10 MB/s Asynchronous (20 MB/s with UltraSCSI)
              -20 MB/s Synchronous (40 MB/s with UltraSCSI)
    LVD Mode:
    Wide Ultra2 SCSI (16 bit)
              -80 MB/s Synchronous
  • Supports Command Tag Queuing, Synchronous/Asynchronous Transfers, disconnects and reconnects
  • Supports plug and play, Power Management implement
  • Supports Serial EEPROM interface to keep the data of SCSI bus configuration
  • Provide Flash EEPROM to make the SCSI BIOS upgradeable
  • SmartSCSI Utility built-in SCSI BIOS
  • Supports NEC PC-98 system
  • SCAM level 1 support
  • Support one External and one Internal 68 pin connectors
  • Provide Auto-switch multi-mode Terminator (LVD/SE)
  • Supports both auto and programmable SCSI termination
  • Provides ASPI manager for DOS, Windows 3.1x and NT for third party applications
  • Support MO in BIOS & Driver for 512, 1024 and 2048 bytes per sector

Components

  • Base on INITIO INIC-1060 Ultra PCI-SCSI I/O processor
  • Provides Multi-Mode Active Terminator

HOST Interface

  • PCI 2.1 compliant interface

Form Factor

  • Length: 5.3 inch
  • Height: 3.7 inch

PRODUCT OUTLINE

INITIO inic-1060
Transfer Rates:
Single-Ended Mode:

Fast SCSI (8 bit)
-5 MB/s Asynchronous (10 MB/s with UltraSCSI)
-10 MB/s Synchronous (20 MB/s with UltraSCSI)
Fast and Wide SCSI (16 bit)
-10 MB/s Asynchronous (20 MB/s with UltraSCSI)
-20 MB/s Synchronous (40 MB/s with UltraSCSI)
LVD Mode:
Wide Ultra2 SCSI (16 bit)
-80 MB/s Synchronous

OS SUPPORTS

DOS/Windows 3.1x
Windows 95/98/Me
Windows 2000
/XP
Windows NT 4.0
NetWare 4.1x/5.0
SCO UNIX
Unix Ware
Solaris 7
OS/2 3.x/4.x
FreeBSD (source codes provided)
Linux (source codes provided)


Manual for
IOI-4203A, IOI-4203U, IOI-9100UW

Manual for
IOI-4204UW, IOI-4206LVD, IOI-5201U3W

Manual for
IOI-A100U2W
