• PCI Bus Master
• INITIO inic-940
• Performs Ultra SCSI bus transfers in single-ended:
  Fast SCSI (8 bit)
         -5 MB/s Asynchronous
         (10 MB/s with UltraSCSI)
         -10 MB/s Synchronous
         (20 MB/s with UltraSCSI)
• Support NEC PC-98
• Provides ASPI manager for DOS, Windows 3.1x and NT for third party applications
• Support MO in BIOS & Driver for 512, 1024 and 2048 bytes per sector
• Provide Flash EEPROM, make the SCSI BIOS upgradeable
• Auto-Termination
• One External High Density 50pin and One Internal IDC 50pin

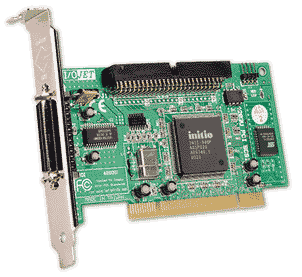

IOI-4203U PCI host adapter delivers UltraSCSI speed for demanding professional applications and high performance peripherals. It takes full advantage of high-speed PCI Bus allowing for true multitasking performance. The onboard SCSI BIOS, which is good for Desktop PC with two different operating systems, enables your computer system to boot from either IDE or SCSI. The SmartSCSI Setup Utility simplifies the SCSI installation process by elimination the need for opening the system chassis to change the jumpers and switch setting.

Features

• Built-in hardware Integrated Scatter/Gather Engine (ISGE)
• Performs Ultra SCSI bus transfers in single-ended:
  Fast SCSI (8 bit)
            -5 MB/s Asynchronous (10 MB/s with UltraSCSI)
            -10 MB/s Synchronous (20 MB/s with UltraSCSI)
• Supports Command Tag Queuing, Synchronous/Asynchronous Transfers, disconnects and reconnects
• Supports plug and play, Power Management implement
• Provides Serial EEPROM interface to keep the data of SCSI bus configuration
• Provide Flash EEPROM, make the SCSI BIOS upgradeable
• Supports NEC PC-98 system
• SCAM level 1 support
• Supports both auto and programmable SCSI termination
• Provides ASPI manager for DOS, Windows 3.1x and NT for third party applications
• Support MO in BIOS & Driver for 512, 1024 and 2048 bytes per sector
• One External High Density 50pin and One Internal IDC 50pin connectors

Components

• Base on INITIO INIC-940 Ultra PCI-SCSI I/O processor
• Provides active terminator

HOST Interface

• PCI 2.1 compliant interface

Form Factor

• Length: 5.7 inch
• Height: 3.4 inch
